Module Support for Fax, SMS, Email, Voice widgets

Thanks to a few long time users who have been supporting the module through various ways such as monetary, testing, ideas and encouragement, I’ve been able to improve and add new capabilities.
I’m preparing now to include the new module release version 5.1.0 in upcoming patch 5.
I’ll be adding documentation here as I get to it writing summary for AI to generate.
Here is setup readme that’d be in module directory.
Feel free to comment. We’re also working hard to release the DORN lab project in the patch 5.

FaxSMS Module Setup Guide

Overview

The FaxSMS module provides integrated communication services for OpenEMR including Fax, SMS, Email, and Voice capabilities. The module supports multiple vendors and allows granular user permissions for each service.

Module Architecture

Supported Services

  • Fax: Send and receive fax documents
  • SMS: Send text messages to patients
  • Email: Send emails and reminders

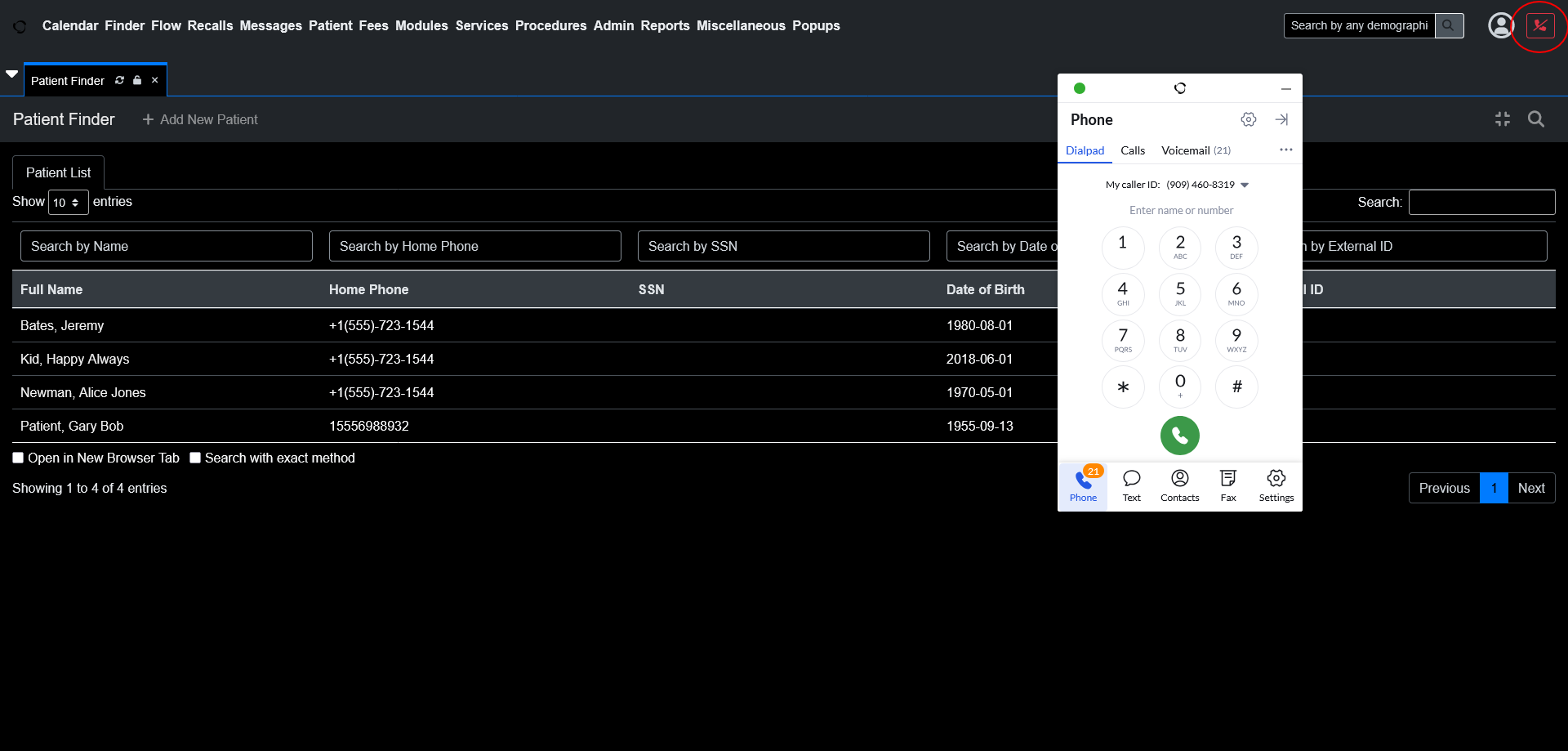

  • Voice: Voice widget functionality

Supported Vendors

  • SMS Services:
    • RingCentral SMS (ID: 1)
    • Twilio SMS (ID: 2)
    • Clickatell SMS (ID: 5)
  • Fax Services:
    • RingCentral Fax (ID: 1)
    • etherFAX (ID: 3)
  • Email Services:
    • Built-in Email Client (ID: 4)
  • Voice Services:
    • RC Voice Widgets (ID: 6)

Setup Process

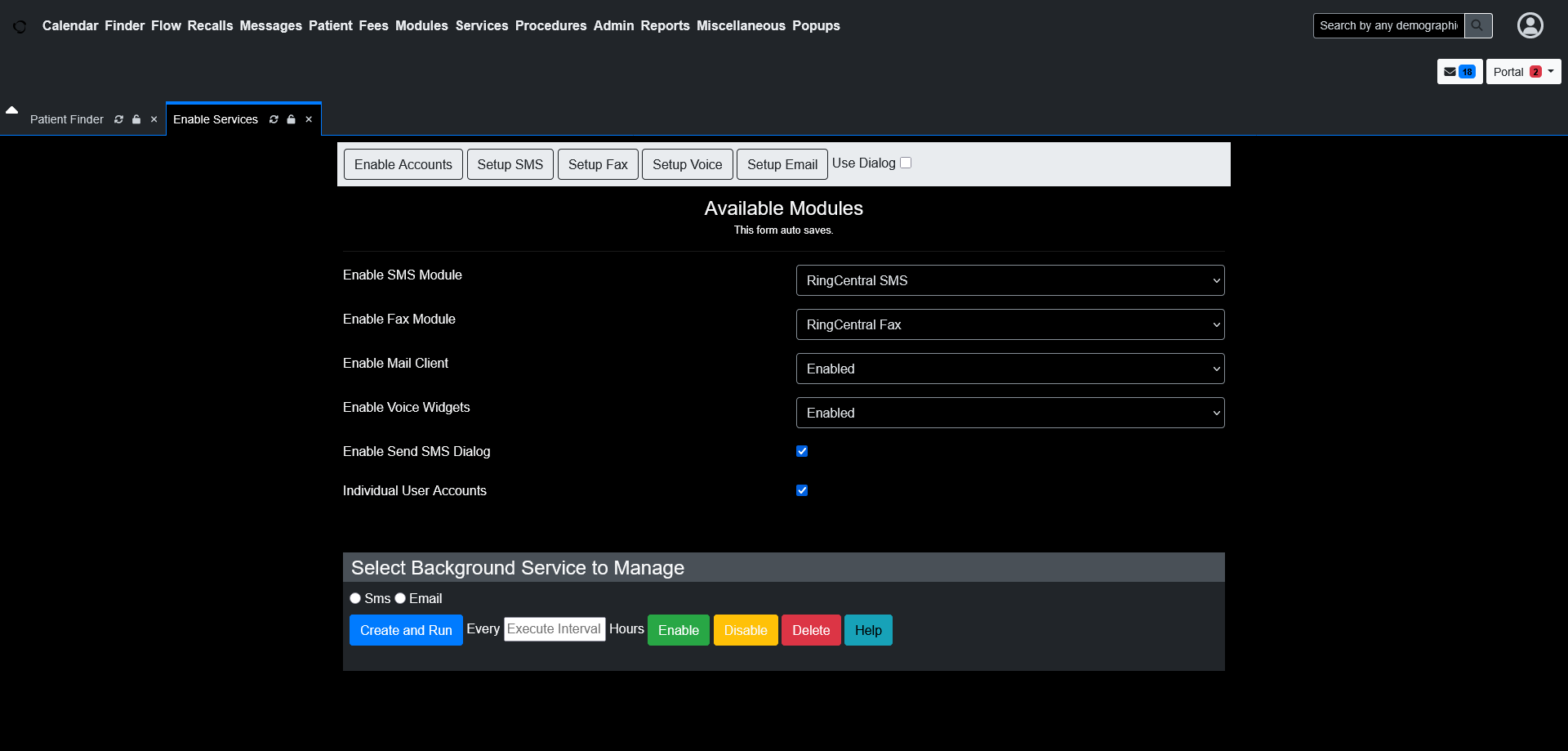

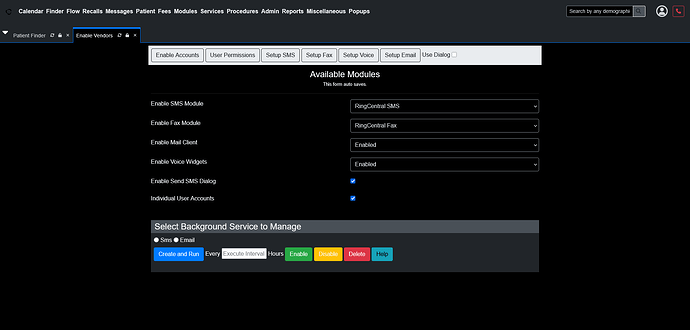

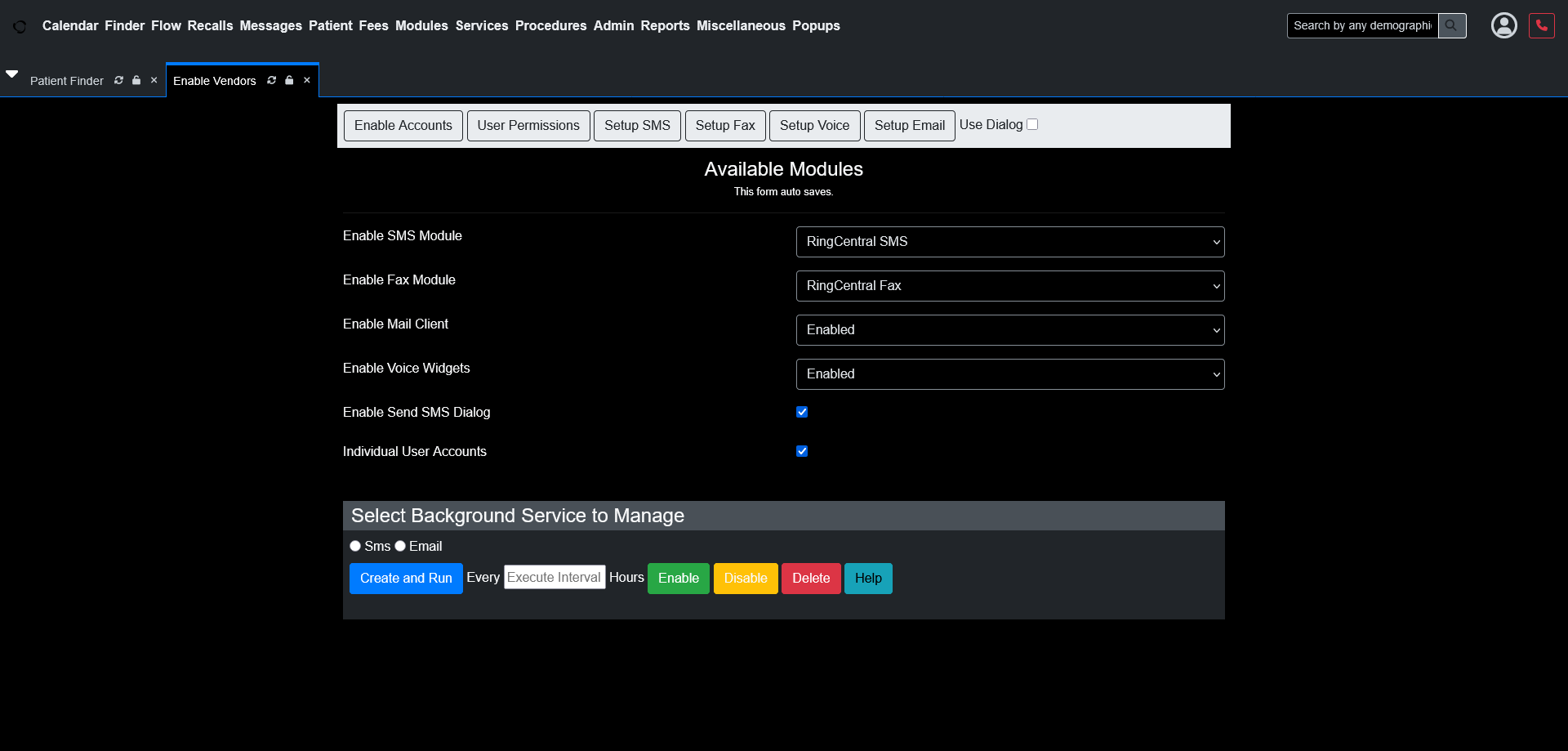

Phase 1: Enable Accounts (Global Configuration)

Administrators should navigate to Services → Setup Services in the OpenEMR menu.

Service Configuration

  1. Enable SMS Module: Administrators can choose from disabled, RingCentral SMS, Twilio SMS, or Clickatell
  2. Enable Fax Module: Options include disabled, RingCentral Fax, or etherFAX
  3. Enable Mail Client: This setting enables or disables the email functionality
  4. Enable Voice Widgets: This controls voice widget support

Additional Options

  • Enable Send SMS Dialog: This option allows SMS sending from various UI locations
  • Individual User Accounts: When enabled, this setting restricts users to their own account credentials with usage tracking by username

Note: The form auto-saves when changes are made to any dropdown.

Phase 2: Vendor Account Setup

After enabling services, administrators need to configure the actual vendor accounts:

Setup Options

  • Setup SMS: Configure SMS vendor credentials
  • Setup Fax: Configure fax vendor credentials
  • Setup Email: Configure email server settings
  • Setup Voice: Configure voice service settings

Interface Modes

  • Panel Mode: Setup forms load in embedded panels
  • Dialog Mode: Setup forms open in modal dialogs (administrators can toggle the “Use Dialog” checkbox)

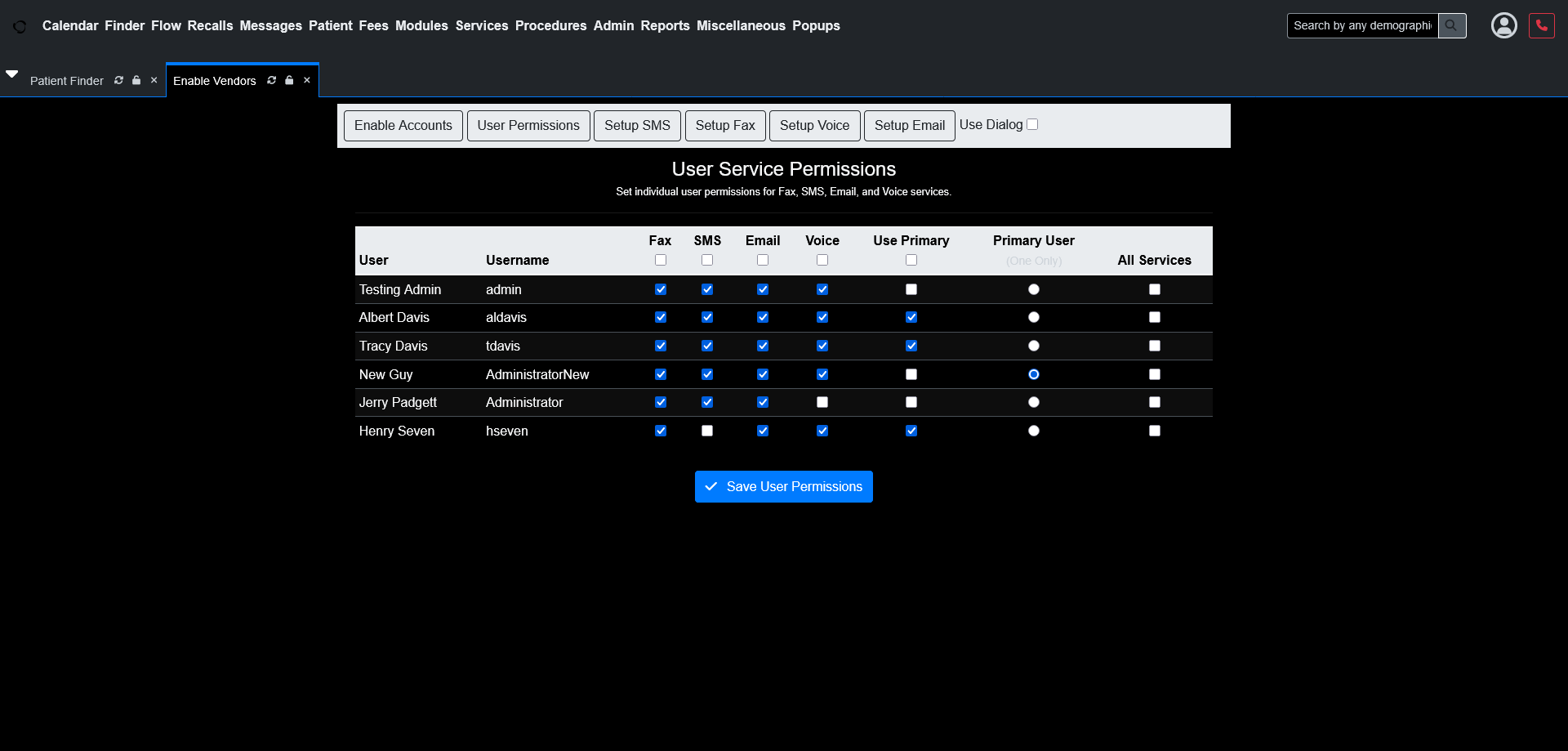

Phase 3: User Permissions

Administrators should click User Permissions to configure individual user access.

Permission Types

For each active user, administrators can set:

  • Fax Permission: Allow the user to send/receive faxes
  • SMS Permission: Allow the user to send SMS messages
  • Email Permission: Allow the user to send emails
  • Voice Permission: Allow the user to use voice widgets

Special Settings

  • Use Primary: Users can utilize the primary account credentials instead of their own
  • Primary User: Administrators can designate one user as the primary account holder for all services

Bulk Operations

  • Toggle All: Check/uncheck all permissions for a specific service
  • Toggle User All Services: Enable/disable all services for a specific user
  • Toggle All Use Primary: Enable/disable primary account usage for all users

Background Services Management

Available Services

Background services can be configured for:

  • SMS: Automated SMS notifications
  • Email: Automated email reminders and notifications

Service Actions

  • Create and Run: Creates the background task but leaves it disabled
  • Enable: Creates (if needed) and enables the background service
  • Disable: Temporarily stops the background service
  • Delete: Permanently removes the background service

Service Configuration

  • Execute Interval: Administrators can set how often the service runs (in hours, default: 24)
  • Status Display: Shows current service status, run interval, and next execution time

Important Notes

  • When a service is first enabled, initial notifications run within 2 minutes
  • Services must be enabled in Phase 1 before background services can be configured
  • Each service can have its own execution schedule

Permission Hierarchy

Global Level

  • The module must be enabled in the “Enable Accounts” section
  • Vendor credentials must be configured

User Level

  • Individual users need specific service permissions
  • Users can be restricted to their own credentials or use the primary account
  • Only one user can be designated as the primary user

Runtime Verification

The bootstrap process verifies permissions in this order:

  1. Check if the global service is enabled
  2. Check if the user has permission for the service
  3. Apply appropriate credentials (user’s own or primary account)

Menu Integration

When services are enabled, the module automatically adds menu items:

  • SMS: Appears as vendor-specific label (e.g., “RingCentral SMS”)
  • Fax: Appears as vendor-specific label (e.g., “RingCentral Fax”)
  • Email: Appears as “Clinic Email”
  • Notifications: Sub-menu for email reminders (test and send)

Security Features

CSRF Protection

All forms include CSRF tokens for security against cross-site request forgery attacks.

Access Control

  • Menu items include ACL requirements
  • Service permissions are enforced at both global and user levels
  • Background services require admin privileges to configure

Data Protection

  • User credentials can be isolated when “Individual User Accounts” is enabled
  • Usage tracking is tied to specific usernames
  • Primary account access can be restricted per user

Troubleshooting

Common Issues

  1. Service not appearing in menu: Check if the service is enabled in “Enable Accounts”
  2. User cannot access service: Verify the user has appropriate permissions
  3. Background service not running: Check service status and ensure it’s enabled
  4. Credentials not working: Verify vendor account setup is complete

Setup Verification

  1. Enable the service in Phase 1
  2. Configure vendor credentials in Phase 2
  3. Set user permissions in Phase 3
  4. Test functionality through the service menu

Best Practices

Initial Setup

  1. Enable only the services that are needed
  2. Configure vendor credentials before setting user permissions
  3. Test with a single user before rolling out to all users
  4. Set up background services during low-usage periods

User Management

  1. Use the primary account feature for simplified credential management
  2. Regularly review user permissions
  3. Consider individual accounts for usage tracking and accountability
  4. Train users on proper service usage

Background Services

  1. Set appropriate execution intervals based on organizational needs
  2. Monitor service logs for any issues
  3. Test background services before enabling in production
  4. Have a backup plan if services fail

Support and Maintenance

Regular Tasks

  • Review user permissions quarterly
  • Monitor background service execution
  • Update vendor credentials as needed
  • Test services after OpenEMR updates

Monitoring

  • Check service status regularly
  • Review usage logs if individual accounts are enabled
  • Monitor vendor account limits and costs
  • Verify background services are running as scheduled

New addition 07/22/2025
The selected Primary User can add/edit all other users account setup. This includes testing.

  • Select the User to edit
  • Now select service from top.
  • Once finish go to feature service to test i.e. Fax, SMS or Voice.

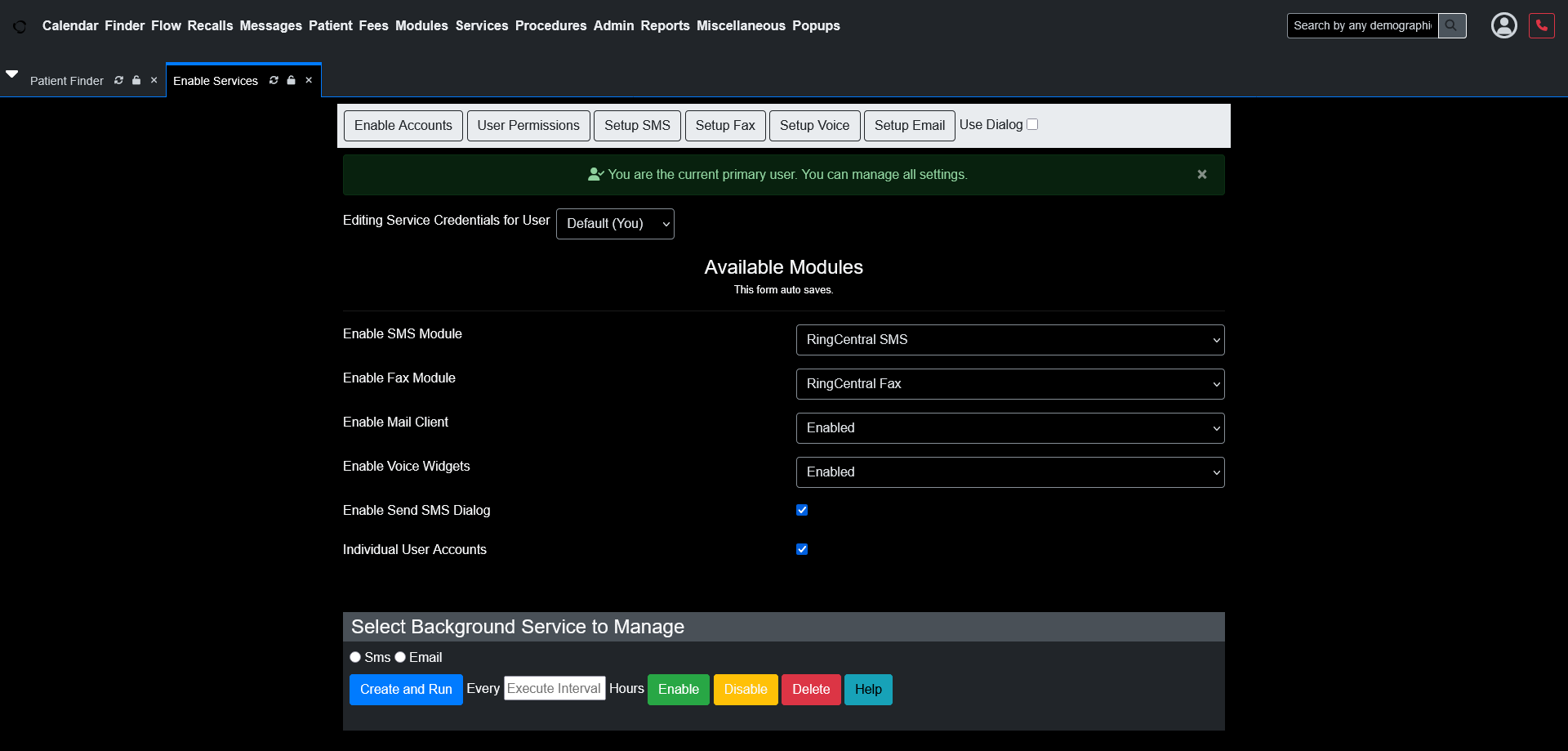

Primary User assigned in User Permissions

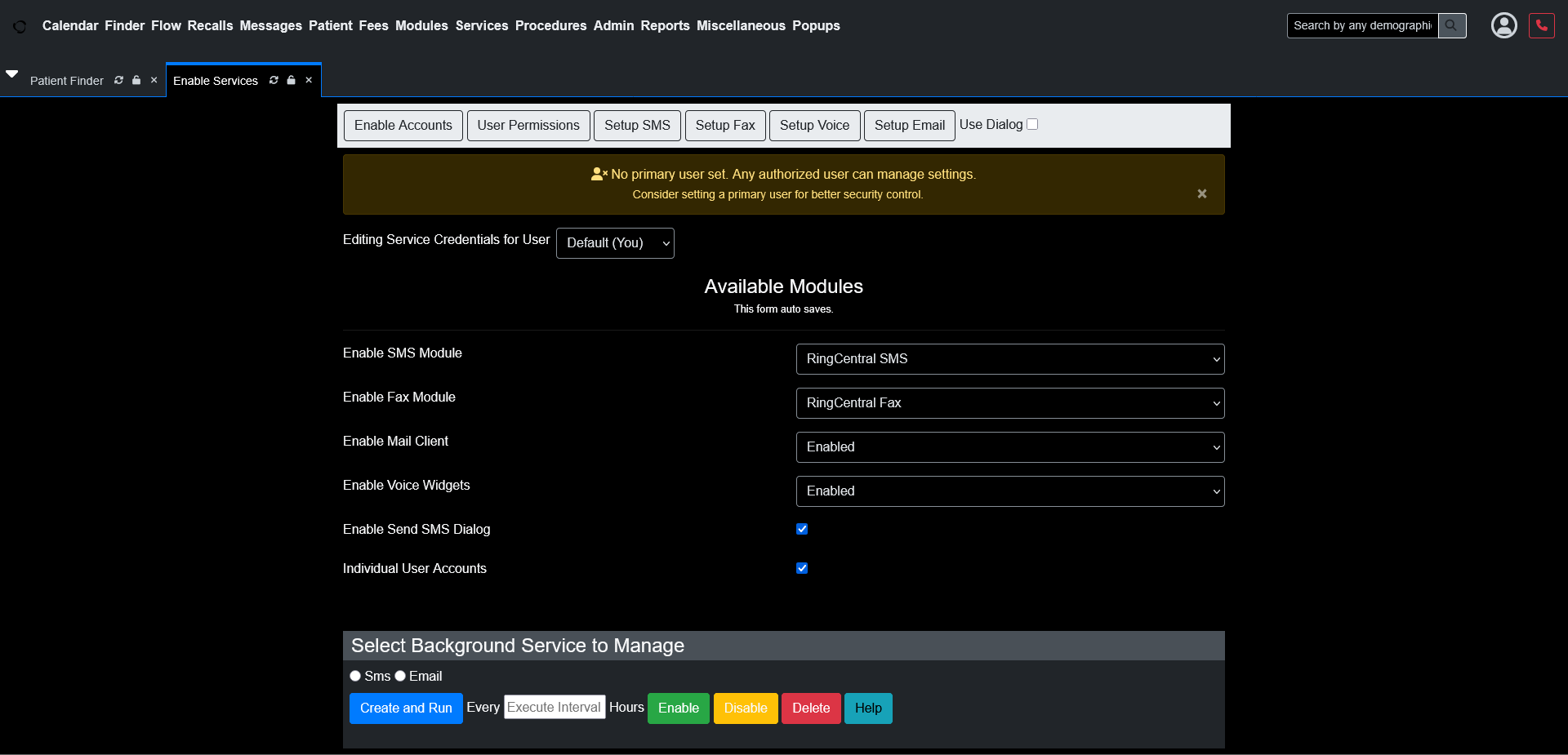

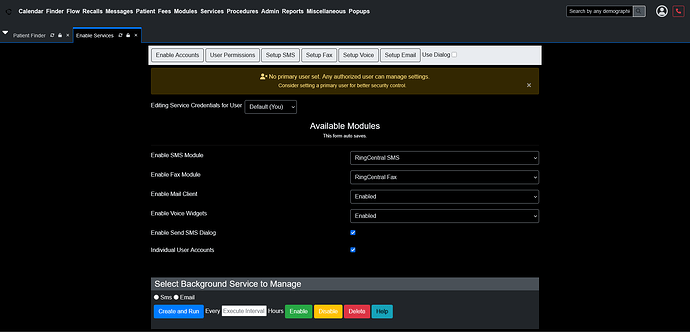

No Primary User

Admins can still manage their credentials.

3 Likes

This is very good. Very good work, Thank you very much. I had a client who needed to send email and WhatsApp, but for each Facility. So I used fields from the facilities (to not modify anything) that we do not use here in Argentina to place the email and company data of the WhatsApp API, I added more variables: “NAME”, ‘PROVIDER’, ‘DATE’, ‘STARTTIME’ ‘ENDTIME’, ‘FACILITY_ADDRESS’, ‘FACILITY_PHONE’, ‘FACILITY_NAME’, ‘FACILITY_EMAIL’ and ‘USER_SUFFIX’, ‘USER SUFFIX’ It is the User Suffix field (M.D., B.S., CPA.)

1 Like

Thanks @luisuriarte I appreciate the kind words.
I’m getting ready to release new stuff in next patch. If you want I can add the tags you added to your local if you send to me.
PM or email.

If anybody wants to install and test, here is a patch. Same as will be in upcoming patch 5.
Tested on v7.0.3.4.
voice-faxsms-510-final.zip (80.7 KB)
