How to Modify openemr UI

OpenEMR Development
1

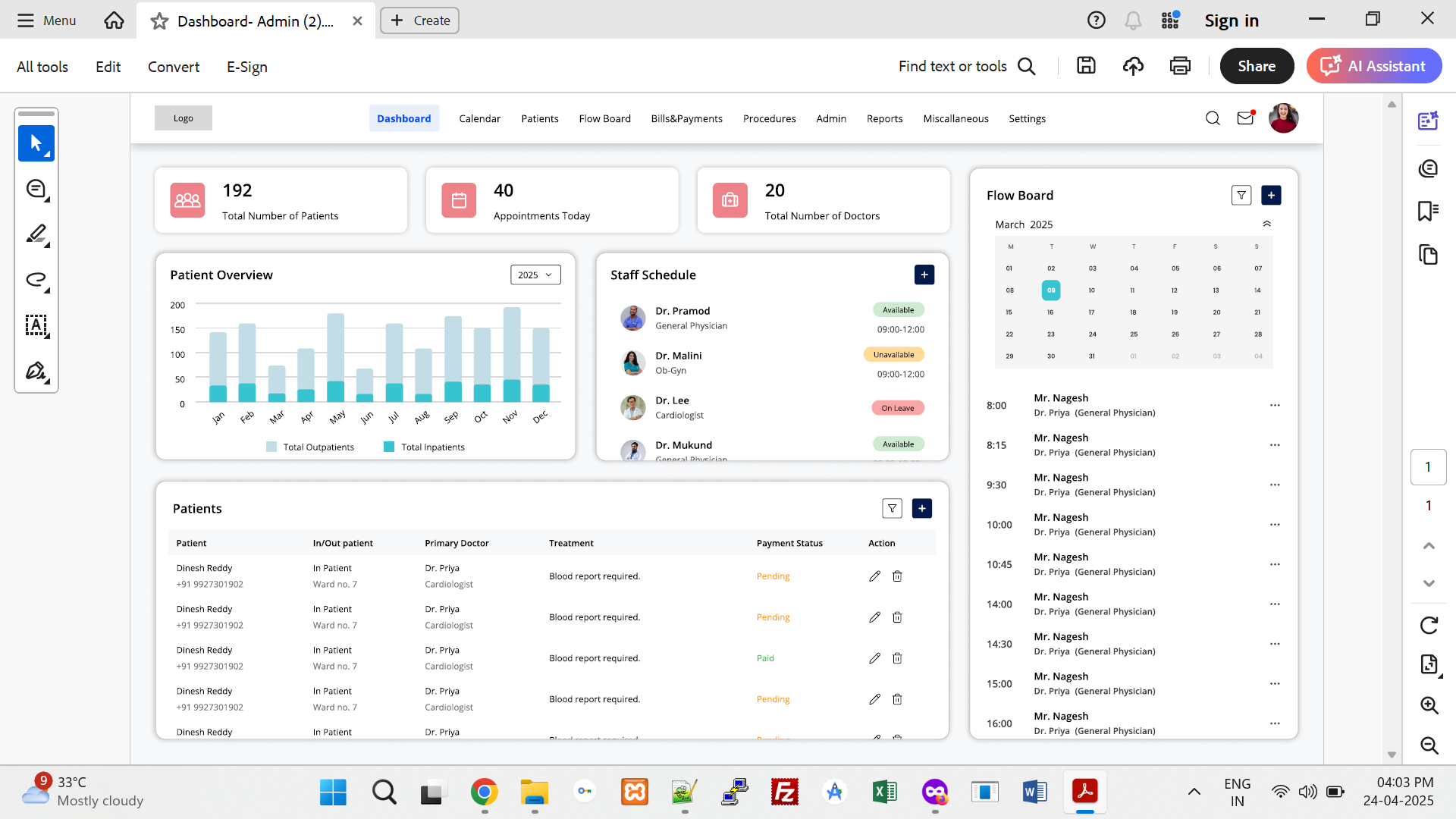

How we can create Admin UI in openemr as below :

  1. What files [ in which path ] we need modify to create UI as below :

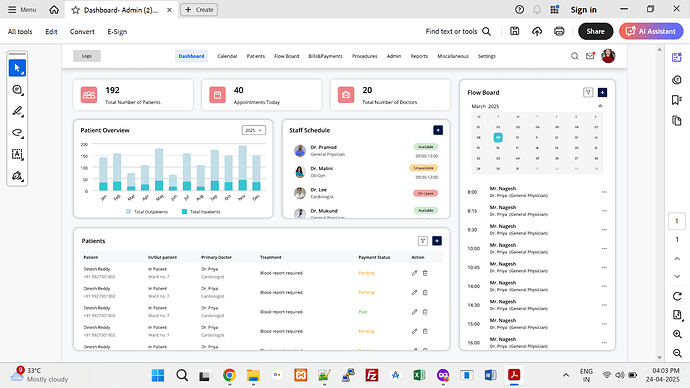

image1920Ă—1080 374 KB

2

To modify the OpenEMR UI (User Interface), you can follow these general steps depending on what part of the UI you want to customize — whether it’s colors, layout, forms, menus, or entirely new modules.

:wrench: 1. Customize Themes (CSS)

You can modify the visual appearance (colors, fonts, layout) through the themes.

Files to Edit:

interface/themes/ – contains themes like style_cobalt.css, style_light.css, etc.

Modify or duplicate a file like:

interface/themes/style_cobalt.css

Example: Change background color

body {

background-color: #1e1e2f; /* Dark blue background */

color: #ffffff;

}

:jigsaw: 2. Modify Menus / Navigation

Edit the menu_template.php file if you’re using the default layout engine.

File:

interface/main/tabs/menu_template.php

You can change or add menu items using:

  • Custom Page

    • :receipt: 3. Edit Forms / Layout-Based Forms (LBF)

    To modify custom intake forms and UI layouts:

    Navigate in OpenEMR to:
    Admin → Forms → Layouts

    Or modify in the DB:

    SELECT * FROM layout_options;

    You can change:

    Field labels

    Input types (text, date, radio)

    Conditional display rules (“Hide this field if…”)

    :gear: 4. Modify Page Content or Add New Pages

    You can modify specific modules like:

    interface/patient_file/summary/demographics.php

    interface/forms/ (for clinical forms)

    To add a new page:

    Create interface/forms/custom_form/new.php

    Add HTML + PHP logic to it.

    Register the form in the OpenEMR GUI under Admin → Forms.

    :technologist: 5. Advanced: Modify Angular Frontend (OEMR v6+)

    Some parts of OpenEMR now use Angular, especially Patient Portal and API interfaces.

    Angular code: interface/weno/ and newer modules

    React-based components: (some newer interfaces)

    If you’re customizing the Patient Portal UI:

    portal/ (for legacy)

    react-portals/ (for new versions using React)

    Pro Tip: Always Backup

    Before editing:

    cp -r openemr/ openemr_backup/

    Useful Dev Tools

    Use Chrome DevTools (F12) to inspect UI elements and find relevant CSS/HTML

    Use VSCode for editing .php, .css, .js files

    Let me know what specifically you want to change — like:

    Color theme?

    Intake form layout?

    Patient summary page?

    Menu structure?

    I can give you exact file paths and code examples.

    3

    Hi

    I’m using OpenEMR version 7.0.3

    I need to customize main menu calender, Finder, Flow etc should be vertical left nav bar something like this


    image180Ă—550 64.8 KB

    Calender
    Finder
    Flow

    Recalls

    Which CSS file i have to change to get vertical left nav bar.

    Browser:
    I’m using chrome.

    Operating System
    I’m using: Windows 10

    Looking forward your reply. Thanks

    4

    Is this a module or a modification of the core code?

    5

    Hi

    I need main menu as vertical instead of horizontal position? Thanks

    6

    @kanmaniguna that is something you will have to build yourself. History: When the frame type system the left hand menus were built out of were deprecated by browsers. The leads at the time decided to go with the top level menu instead of replacing the left menu with DIVs. The engineer that wrote the current menu system using Knockout JS was accepted because there was no competing code to refactor the side menu. If you go back to version 4, you can pickup the side menu there. The challenge would be to modernize the menu system and bring it forward. Or you can write a module that can allow you to choose between top level menu or left menu. This is my two cents.

    1 Like
    7

    Hi Sherwin
    Thanks for your response.
